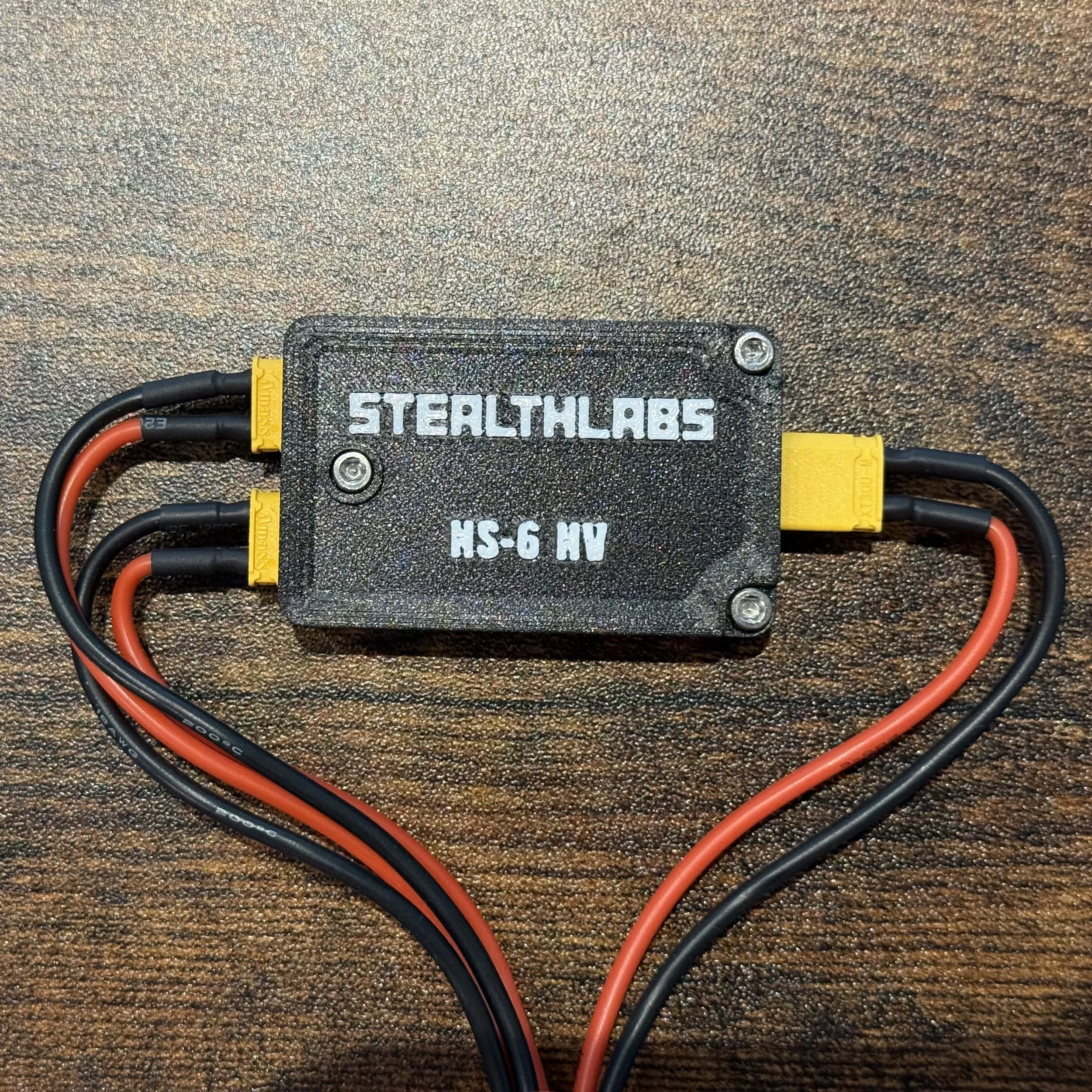

POWER CONTINUITY MODULE

HS-6 HV

Dual-Input, Compact 5-55V active ideal-diode ORing for field robotics and DC systems.

Two power sources feed one protected output through low-loss ideal-diode channels. Designed for tether-to-battery transitions, redundant supplies, mobile sensor payloads, and compact edge systems where a source change should not require an intentional shutdown.

5-55 V

DC OPERATING RANGE

6A

BURST RATING

3 A

CONTINUOUS RATING

<10 mΩ

MOSFET RDS(ON) / CHANNEL

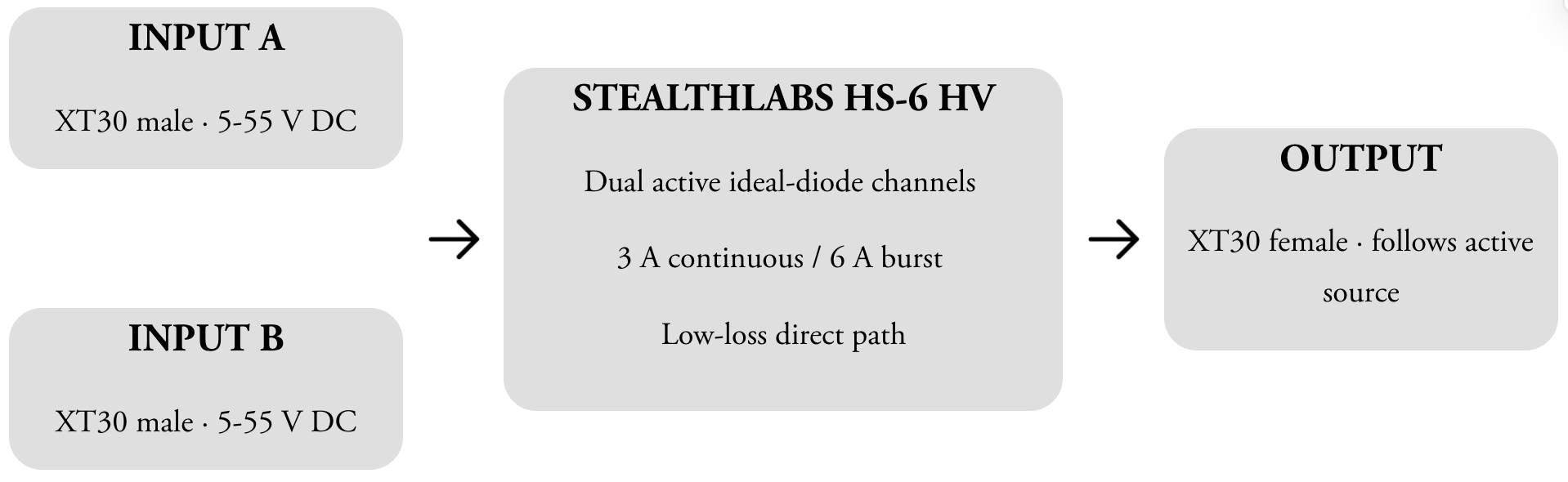

SYSTEM FLOW

Two Sources. One uninterrupted power path.

INPUT A

XT30 male · 5-55 V DC

OUTPUT

XT30 female · follows active source

INPUT B

XT30 male · 5-55 V DC

SYSTEM BEHAVIOR

✓ Automatic Source Selection

✓ No interruption during switchover

✓ Low-loss, high efficiency

✓ Ideal for redundant systems
